NetSuite: Display SuiteQL Query Results On Custom Tabs

Published on May 11, 2022.

One of the more interesting ways that I've been using SuiteQL is by presenting query results on custom tabs on various NetSuite forms. For example, I was recently asked by a client to customize their Sales Order Form so that it displays the most recent orders that have been placed by the client.

At the bottom of this post is a UserEventScript script that I thought I'd share, which is a good example of the technique that I've been using.

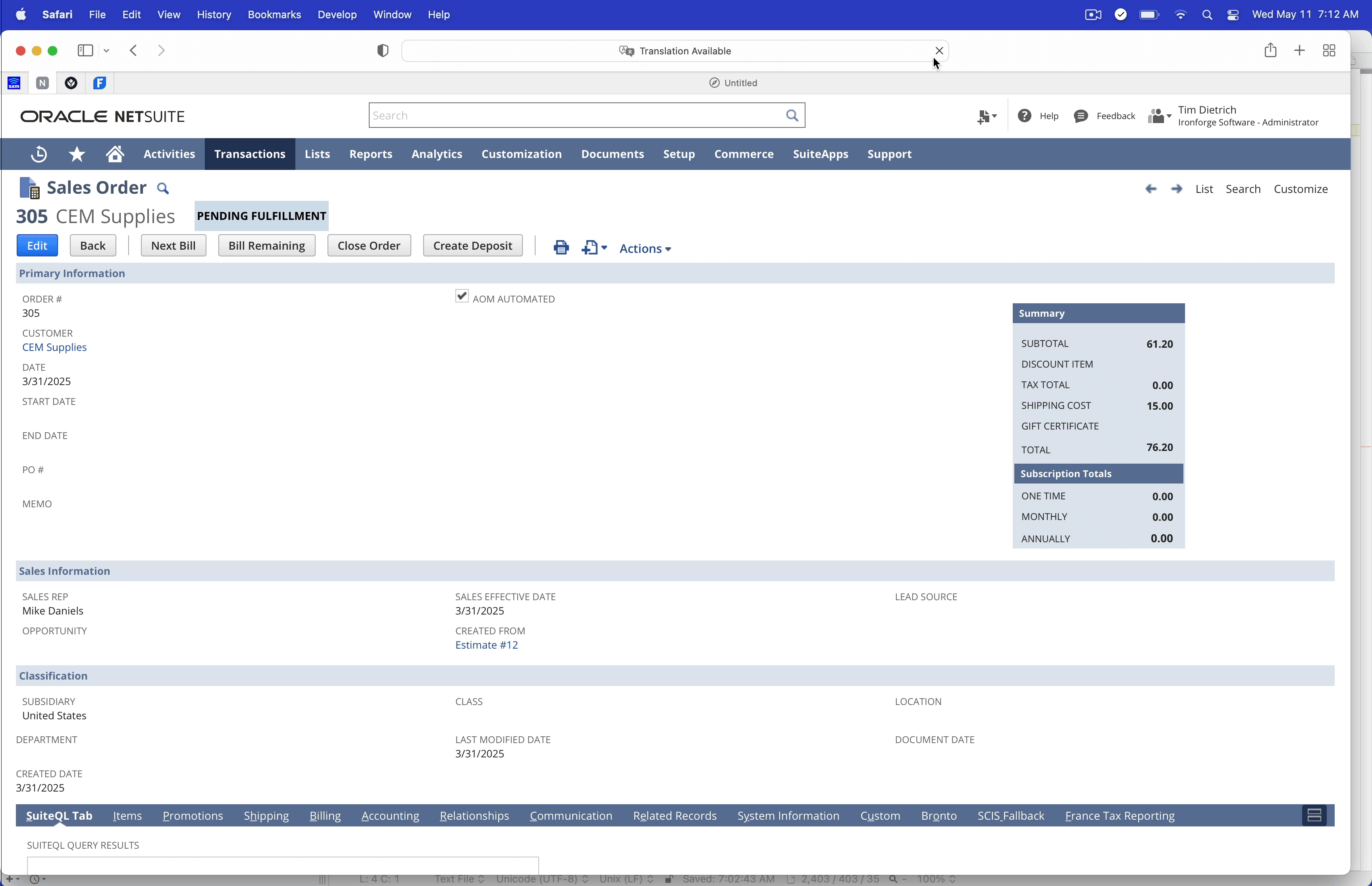

Also, here's a video showing the technique in action.

Click the image to view a larger version.

Things to Consider

I think the code is straightforward, but here are a few things to consider.

I'm repositioning the custom tab so that it is presented before the Items tab. In other words, the custom tab becomes the first tab, and by default, its contents are immediately displayed. Of course, this is optional. To disable this, simply remove or comment out the call to the "context.form.insertTab" method.

The table is being displayed using DataTables, a plug-in for the jQuery Javascript library. If you've used my SuiteQL Query Tool, then DataTables is probably familiar to you. If you'd prefer not to use it, you can disable or remove the "$('#sqlResultsTable').DataTable" call, and also remove the external DataTable-related stylesheet and script.

The script is structured so that the custom tab is presented regardless of whether or not the query returns results. If you wanted to only display the tab in cases where results are found, you could easily modify the script to do so.

The script is designed to only run when a transaction is being viewed.

And finally, in this example, I'm using a somewhat random query (sample employees). Obviously, you'd want to use a more helpful and relevant query. For example, on a Sales Order transaction you might choose to display other orders placed by the customer, the items that they order regularly, contacts at the customer's company, and so on. You could also use it to present suggested upsell and cross-sell items. The possibilities are endless.

Wrapping Up

I've had a lot of success using this technique, and I hope it proves to be helpful to you, too. My clients love that it is easy to implement and extremely fast. It's another great example of how you can put SuiteQL to work.

The Script

/**
* @NApiVersion 2.1
* @NScriptType UserEventScript
* @NModuleScope Public
*/

/*

------------------------------------------------------------------------------------------
Script Information
------------------------------------------------------------------------------------------

Name:
SuiteQL Tab

ID:
_suiteql_tab

Description
Adds a tab w/ query results to a transaction form.

Applies To
• Sales Order (_suiteql_tab_so)


------------------------------------------------------------------------------------------
MIT License
------------------------------------------------------------------------------------------

Copyright (c) 2022 Timothy Dietrich.

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.


------------------------------------------------------------------------------------------
Developer
------------------------------------------------------------------------------------------

Tim Dietrich
• timdietrich@me.com
• https://timdietrich.me


------------------------------------------------------------------------------------------
History
------------------------------------------------------------------------------------------

20220511 - Tim Dietrich
• Initial version.


*/

var log, query, serverWidget;

define( [ 'N/log', 'N/query', 'N/ui/serverWidget' ], main );

function main( logModule, queryModule, serverWidgetModule ) {

	log = logModule;
	query = queryModule;
	serverWidget = serverWidgetModule;

    return {
    	beforeLoad: beforeLoad
    }

}

function beforeLoad( context ) {

	if( context.type !== context.UserEventType.VIEW ) { return; }

	var suiteqlTab = context.form.addTab(
		{
			id : 'custpage_sql_tab',
			label : 'SuiteQL Tab'
		}
	);

	context.form.insertTab(
		{
			tab: suiteqlTab,
			nexttab:'items'
		}
	);

	var suiteqlField = context.form.addField(
		{
			id: 'custpage_suiteql_field',
			type: serverWidget.FieldType.TEXT,
			label: 'SuiteQL Query Results',
			container: 'custpage_sql_tab'
		}
	);

	var records = sqlQueryRun();

	context.newRecord.setValue(
		{
			fieldId: 'custpage_suiteql_field',
			value: sqlResultsTableGenerate( records )
		}
	);

}

function sqlQueryRun() {

	var sql= `
		SELECT
			ID,
			LastName,
			FirstName,
			Phone,
			Email
		FROM
			Employee
		WHERE
			Email LIKE '%@test.com'
		ORDER BY
			LastName,
			FirstName
	`;

	return query.runSuiteQL( { query: sql, params: [] } ).asMappedResults();

}

function sqlResultsTableGenerate( records ) {

	if ( records.length === 0 ) {
		return '<div><p>No records were found.</p></div>';
	}

	let thead = `
		<thead>
			<tr>
				<th>Last Name</th>
				<th>First Name</th>
				<th>Email</th>
				<th>Phone #</th>
			</tr>
		</thead>`;


	var tbody = '<tbody>';

		for ( r = 0; r < records.length; r++ ) {

			var record = records[r];

			tbody += `
				<tr>
					<td></td>
					<td></td>
					<td><a href="mailto: ${record.email}">${record.email}</a></td>
					<td><a href="tel: ${record.phone}">${( record.phone || '' )}</a></td>
				</tr>`;

		}

	tbody += '</tbody>';

	let stylesheet = `
		<style type = "text/css">

			/* Styled Table */
			/* https://dev.to/dcodeyt/creating-beautiful-html-tables-with-css-428l */

			.styled-table {
				border-collapse: collapse;
				margin: 25px 0;
				font-size: 0.9em;
				font-family: sans-serif;
				min-width: 400px;
				box-shadow: 0 0 20px rgba(0, 0, 0, 0.15);
				width: 100%;
			}

			.styled-table th,
			.styled-table td {
				padding: 6px;
			}

			.styled-table thead tr {
				background-color: #607799;
				color: #ffffff;
				text-align: left;
			}

			.styled-table tbody tr {
				border-bottom: thin solid #dddddd;
			}

			.styled-table tbody tr:nth-of-type(even) {
				background-color: #f3f3f3;
			}

			.styled-table tbody tr.active-row {
				font-weight: bold;
				color: #009879;
			}

			.styled-table tbody tr:hover {
				background-color: #ffff99;
			}

		</style>
	`;


	return `

		${stylesheet}

		<link rel="stylesheet" type="text/css" href="https://cdn.datatables.net/1.10.25/css/jquery.dataTables.css">
		<script type="text/javascript" charset="utf8" src="https://cdn.datatables.net/1.10.25/js/jquery.dataTables.js"></script>

		<div style="margin-top: 6px; border: 1px solid #ccc; padding: 24px;">

			<table id="sqlResultsTable" class="styled-table" style="width: 100%;">
				${thead}
				${tbody}
			</table>

		</div>

		<script>

			window.jQuery = window.$ = jQuery;

			$('#sqlResultsTable').DataTable( { "pageLength": 10, "lengthMenu": [ 10, 25, 50, 75, 100 ] } );

		</script>

	`;

}
